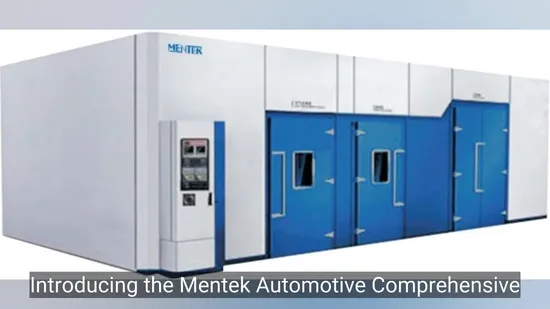

3 Year Warranty Computer Control Heat Pump Enthalpy System Energy Efficiency Testing Laboratory

Basic Info

Model NO.	DMS-036
Origin	China
HS Code	9024101000
Production Capacity	1000

Product Description

Energy Efficiency Testing Lab Temperature and Humidity Room for Household Refrigerator Freezers

Detailed Product Description

UUT:	Refrigerator & Freezers	Chamber External Dimensions:	6000W×11000D×3500H
Chamber Doors:	Single Door, 2 Set	Test Station:	Can Be Customized
High Light:	energy efficiency testing laboratory , energy efficiency lab test equipment

Overview:

The refrigerator & freezer performance lab consists of one testing chamber, the freezing capacity, energy consumption and other performances of refrigerator and freezers can be tested. This installation can be used to test the performance of 8 household vertical refrigerators or 4 Freezers, and can also be used for other standard operating condition related tests and expanded tests, meeting the needs for product sampling inspection and product development.

In this test system, the operation of the equipment is controlled by a programmable controller and a HMI, test data are collected by a high accuracy data collector, the data can be transferred at real time to an upper level computer for processing, the test reports can be displayed, stored, output and printed through the computer.

Standards:

Design and Testing according to the following standards:

ISO 15502: 2005(ISO 5155, ISO 7371, ISO 28187, ISO 8561)

IEC 62552-1,IEC 62552-3

SASO 2664

Other standards can be customized

Testing Contents:

Storage Temperatures

Cooling Speed

Energy consumption

Freezing Test (Base ISO 15502:2005)

Load Temperature rise time

Ice Making Capacity,Freezing Capacity

Voltage, Current, Power, Power factor

Working coefficient

Enclosure sweat test

*Detailed test method and calculation according to the standards.

Structure:

This test room consists of 2 test chambers, mainly including the room structure, 2 set of air conditioning device,

2 set of electrical control system, and 2 set of measuring system.

Test Chamber Temperature and Humidity:

Name	Sensor	Transducer	Controller	Regulator
Type	R221-30	-	UT-55A	PAC Series
Range	0.00~60.00ºC 20~100%RH	-	0.00~100.00ºC
Accuracy	±0.2ºC ±2%RH	-	±0.1ºC	±1.0%
Input	Pt100 Ω	-	DC 1~5V	4~20mA
Output	-	-	4~20mA	AC 1Φ 230V
Remark	-	-	RS485	FUSE
Maker	CHINO	-	YOKOGAWA	Ximanden
Number	2		4	4
